DSEM810 (Non Keyed)

10” Programmable Display
The DSEM810 is a 10” programmable display designed for use on vehicles and off-highway machinery. Developed for use as a standalone product or as part of a larger system, the DSEM810 provides users with outstanding flexibility. CANopen, SAE J1939 and raw CAN connectivity allow the configurable on-board I/O to be supplemented with a range of devices including DSEM64X programmable controllers or CAN enabled distributed I/O such as DSE2160 or DSE2170.

Two independent CAN interfaces and onboard Ethernet provides flexibility to connect with a range of external equipment. Panel mounting and RAM mount options are both available, along with the option to use in landscape or portrait orientation. The DSEM810 is configured using CODESYS 3.5 or Qt 6.
OVERALL SIZE
281 mm x 181 mm x 61.5mm / 11.0” x 7.12” x 2.42”

WEIGHT
1.76 kg
3.88 lb

PRODUCT VARIANTS
M810-01 - CODESYS (Keyed)
M810-02 - CODESYS (Non Keyed)
M810-03 - Qt (Keyed)
M810-04 - Qt (Non Keyed)
Request a Quotek Find Local Distributork

Request a Quote

✕
e -
Please select a product
Please enter a quantity
e +

add another product

Please enter your title
Please enter your first name
Please enter your surname
Please enter your company name
Please select your country
Please enter a delivery County/State
Please enter your email
Please enter your mobile number
Webform URL: Website Option: Webform: Named Distributor: Distributor's Email: Named Reseller: Reseller's Email:

Developed for Qt
The DSEM810 has been developed for Qt programming to provide the ultimate flexibility for product users.
Developed for CODESYS
The DSEM810 has been developed for CODESYS programming to provide the ultimate flexibility for product users.
DSEM810 - 10” Programmable Display

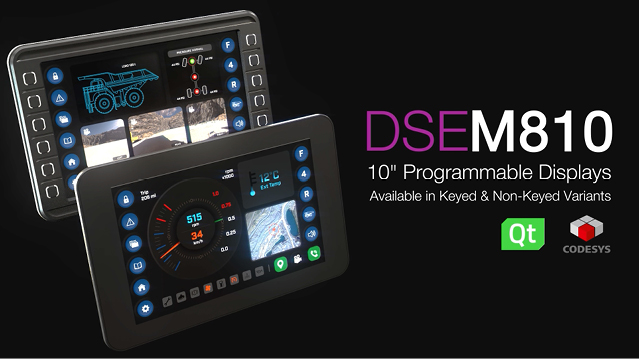

Click to view our DSEM810 product animation and get an insight into the outstanding range of features on offer.
Product Highlights
Related Products
l

Product Highlights

Key Features

Key Features

Optically bonded 10.1" colour display for harsh environments
Daylight visible, anti-glare display (1000 cd/m² (nit))
Capacitive touch screen with glove support.
NXP i.MX 8 DualXPlus processor with GPU.
8 GB flash / 1 GB RAM.
4 outputs (Digital / PWM).
4 inputs (Digital, resistive, voltage, current, frequency input)
2 independent CAN interfaces (J1939, CANopen and Raw CAN)
Real time clock
Audio output
2 analogue camera inputs, TCP/IP camera
Web browser
PDF viewer
Movie player
USB for firmware / application updates and additional storage for files / data logs
Ethernet including CODESYS Modbus TCP client

Specification

DC SUPPLY

8 V DC to 32 V DC

CURRENT CONSUMPTION

OPERATING CURRENT
< 1500 mA at 12 V and 24 V without external loads

DISPLAY

10.1" TFT,

1280 x 800 resolution

24 bit colour
Optically bonded


INPUTS

TYPE
Voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V
Current 0 mA to 20 mA
Ratiometric
Resistive 0 Ω to 3 kΩ
Frequency 5 Hz to 30 kHz
Digital positive / negative

OUTPUTS

TYPE
Digital - High side / low side
PWM - High side 0 Hz to 250 Hz

PROCESSOR

iMX8DualXPlus Microcontroller
2 x ARM Cortex A35
1 x ARM Cortex M4

Speed
1.2 GHz
264 MHz

Flash
4.6 GB available for application
8 GB total

RAM
1 GB

INTERFACES / COMMUNICATIONS

CAN 1 and 2
CAN Interfaces 2.0 A/B, ISO11898
50 kbits/s... 1 Mbit/s
CANopen, SAE J1939 or Raw CAN

Ethernet
10 Mbit/s / 100 Mbit/s
Duplex
CODESYS Modbus TCP Client

USB
USB host 2.0 (480 Mbit/s)

WIFI
WIFI 2.4 GHz
IEEE 801.11 b/g/n

DIMESIONS

Overall (W x H x D) without buttons

281 mm x 181 mm x 61.5mm / 11.0” x 7.12” x 2.42”

Panel Cut-Out (W x H)

265 mm x 165 mm (R 12 mm) / 10.2” x 6.5” (R 0.5”)

Maximum Panel Thickness

6 mm / 0.2”

RAM Mountable

AMPS hole pattern

Environmental Testing Standards

CE MARKING

EN-6100-6-2
Electromagnetic compatibility (EMC) noise immunity
EN 61000-6-4
Electromagnetic compatibility (EMC) emission standard
BS EN 61010: 2010 +A1: 2019
Safety of information technology equipment, general requirements

UN/ECE-R10.06
E11

SALT SPRAY
BS EN 60068-2-52
Test Kb - Salt Mist Cyclic (Sodium Chloride Solution) Severity 3
One test cycle consisting of:
Salt mist temperature: +15 ˚ C to +35 ˚ C Spray period: 2 hours
Followed by humidity storage period: 20 - 22 hours at 93+2-3% rh and +40 ˚ C ± 2 ˚ C
Four test cycles (as above) to be applied followed by a Storage Period:
3 days @ 45-55% rh and +23°C ±2°C

WATER AND DUST

IEC60529
IP67 / NEMA6

MECHANICAL TESTS

EN 60068-2-64
Vibration random
Freq range 10 Hz to 350 Hz

ISO 16750-3
Test VII; vibration
Random mounting
Location: vehicle body

EN 60068-2-27
Mechanical shock
Shock pulse shape: Half sine
Amplitude: 50 g
Duration: 11 ms
Number of shocks: 3 in each direction of each axis (9 in total of each duration)

EN 60068-2-27
Mechanical shock
Shock pulse shape: Half sine
Amplitude: 50 g
Duration: 6 ms
Number of shocks: 3 in each direction of each axis (9 in total of each duration)

ISO 16750-3
Bumps
Amplitude: 30 g
Duration: 6 ms; 24,000 shocks

LOAD DUMP

iso 16750-2
151 V (Ri 1 Ω)
202 V (Ri 8 Ω)

Product Variants

M810-01 - CODESYS (Keyed)
M810-02 - CODESYS (Non Keyed)
M810-03 - Qt (Keyed)
M810-04 - Qt (Non Keyed)
