Advanced Paralleling Gen-Set Controllers
c
DSEG8007
7” Graphical Colour Remote Overview Display
The DSEG8007 is a 7” touch screen, full colour, graphical display providing the user with remote control and monitoring of an entire system. It has been designed to seamlessly integrate with the single-set and multi-set DSEG8600 modules, with configuration options suitable for a wide variety of applications. The DSEG8007 display screen design provides comprehensive large screen graphs, meters and numeric values to indicate engine, generator and mains (utility) status information in a clear and concise format.
OVERALL SIZE
316.8 mm x 168.8 mm x 42.8 mm / 12.47 ” x 6.65 ” x 1.69 ”
PANEL CUTOUT SIZE
282 mm x 136 mm / 11.10 ” x 5.35 ”
MAXIMUM PANEL THICKNESS
8.0 mm / 0.31 ”
PRODUCT VARIANTS
G8007-01
316.8 mm x 168.8 mm x 42.8 mm / 12.47 ” x 6.65 ” x 1.69 ”
PANEL CUTOUT SIZE
282 mm x 136 mm / 11.10 ” x 5.35 ”
MAXIMUM PANEL THICKNESS
8.0 mm / 0.31 ”
PRODUCT VARIANTS
G8007-01
Request a Quote
Product Highlights
Key Features
Enhanced 7" high resolution, touch screen, colour display with an enhanced graphical user interface to display system application diagrams
Powerful processor for fast monitoring and control response times across multiple single-set and multi-set DSEG8600 modules within the same system
Front panel control and monitoring of a maximum of 20 DSEG8600 modules within the same system
Simultaneous RS485 and Ethernet communications to multiple single-set and multi-set DSEG8600 modules
Internal audible alarm provides alerts when a fault occurs within the monitored system
Digital outputs activate an external high intensity siren/beacon to provide alerts when a fault occurs within the monitored system
Multiple language support
PC configuration using DSESCADA Suite
IP65 rating when mounted to panel fascia with supplied sealing gasket
Specification
DC Supply
CONTINUOUS VOLTAGE RATING8 V to 35 V DC continuous
CRANKING DROPOUTS
Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
300 mA at 12 V, 150 mA at 24 V
Outputs
DIGITAL ALARMNumber: 8
Type:
Positive Switching DC Output
Positive DC Output Rating: Output C to D: 2 ADC at module supply voltage
Positive DC Output Rating: Output C to D: 2 ADC at module supply voltage
Communications
USB A1 Programming Port
USB B
1 File Update Port
RS232*
1 Non-Isolated Port
RS485
1 Non-Isolated Port
ETHERNET
1 10/100 Ethernet Port
*Available in future software updates
Environmental Testing Standards
Electro-Magnetic Compatibility
BS EN 61000-6-2 EMC Generic Immunity Standard for the Industrial Environment
BS EN 61000-6-4 EMC Generic Emission Standard for the Industrial Environment
Electrical SafetyBS EN 61010 Safety of Information Technology Equipment, including Electrical Business Equipment
TemperatureBS EN 60068-2-1 Ab/Ae Cold Test -30 ºC
BS EN 60068-2-2 Bb/Be Dry Heat +70 ºC
Vibration
BS EN 60068-2-6 Ten sweeps in each of three major axes
5 Hz to 8 Hz at ±7.5 mm
8 Hz to 500 Hz at 2 Gn
HumidityBS EN 60068-2-30 Db Damp Heat Cyclic 20/55 ºC at 95% Relative Humidity 48 Hours
BS EN 60068-2-78 Cab Damp Heat Static 40 ºC at 93% Relative Humidity 48 Hours
Shock
BS EN 60068-2-27 Three shocks in each of three major axes
15 Gn in 11 ms
Degrees of Protection Provided by EnclosuresBS EN 60529 IP65 - Front of module when installed into the control panel with the supplied sealing gasket.

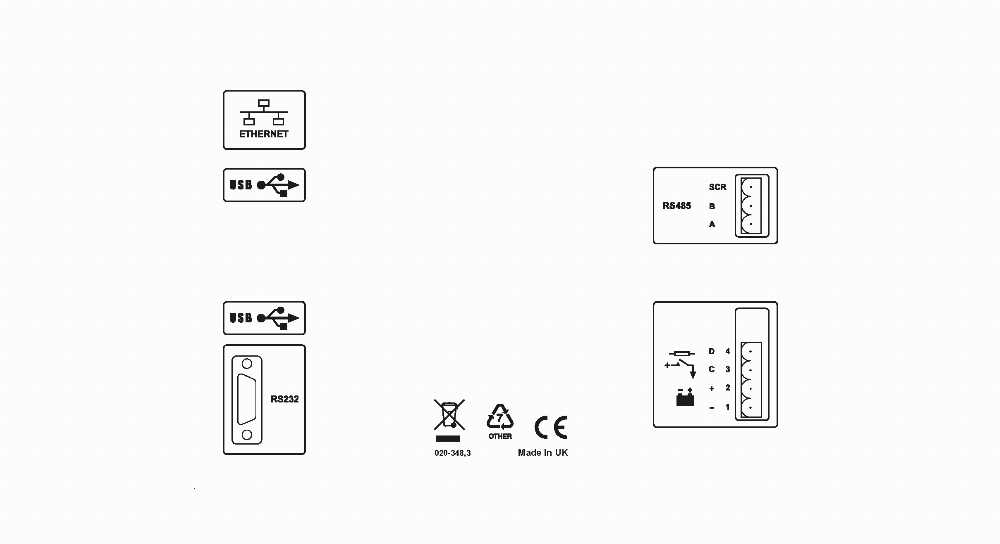

Connection Diagram
